2 Phase 4 Wires 10mm Micro Metal Gearmotor Stepper Motor With encoder

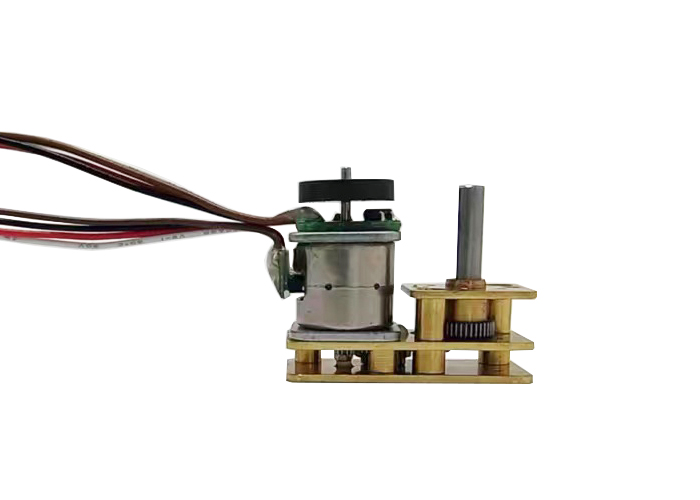

This is a combination of a 10MM micro stepper motor and a 10 * 24 precision metal gearbox, with an encoder. The reduction ratio can be customized according to customer needs.
The basic step angle of the motor is 18 degrees, which is 20 steps per revolution. Combined with the deceleration effect of the gearbox, the final resolution of the motor rotation angle can reach 0.05-6 degrees, which can be used for various requirements. Accurately control the rotation position of the magnetic field.
Gearbox gear ratio: 1:10, 1:30, 1:50, 1:100, 1:144, 1:150, 1:300, 1:323, 1:483, 1:500, 1:668, 1:945, 1:1000. Customers can match the gear ratio according to different torque and speed requirements.
Given an appropriate driving frequency, a stepper motor can achieve the determination of speed and torque.
The power input section and standard stepper motor can be used as probe structures, FPC, FFC, PCB cables, and other forms.
The partial output of the motor can be used for various output structures, such as circular shafts, D-axes, etc!

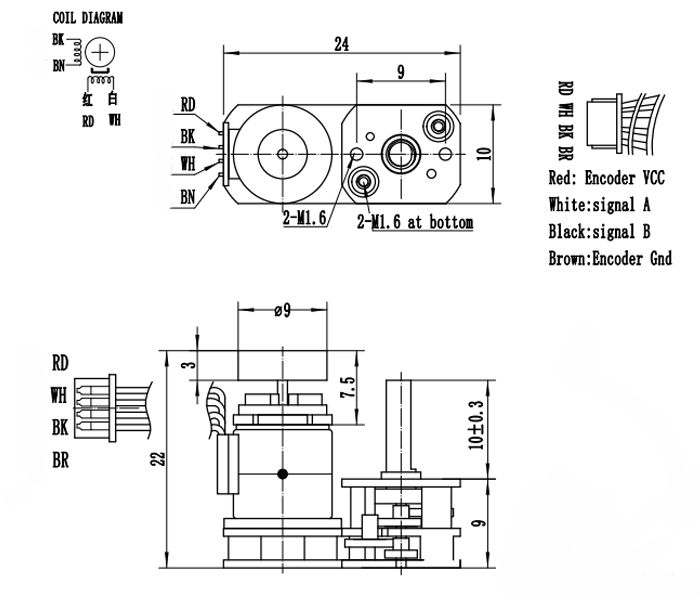

Mechanical Dimension:MM
Typical Applications
- Saliva Analyzer
- Blood Analyzer
- Welding Machine
- Intelligent Security Products
- Fiber Fusion Splicer
- Digital Electronics
Specifications
| PRODUCT NAME | 10mm geared stepper motor |
| MODEL | VSM10-1024-10G encoder |
| RESISTENCE | 40Ω±7% |
| Lead length | 75mm |
| Motor step angle | 18° |
| Gear ratio | 1:10 |
| OPERATING TEMPERATURE RANGE | -0~+55 ℃ |
| OEM & ODM SERVICE | AVAILABLE |
Torque Curve For Reference
Type of Wire Connect
Motor input method with Pin type,FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Shaft Type
Out shaft standard as follows,also can customerized due to the user drawings
welcome to contact customer service for more types
-
Round Type : DIA3mm. 4mm. 5mm
-
D-cut Type: DIA3-D2.5 DIA4-D3 etc
-
Screw Type: M3 M4 M5 Serial
-
Trape Type
-
I-cut Type: DIA3-I2 DIA4-I3
-
Other Type: Shaft with a hole etc
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes can be customized.
Product Detail Presentation
|
|

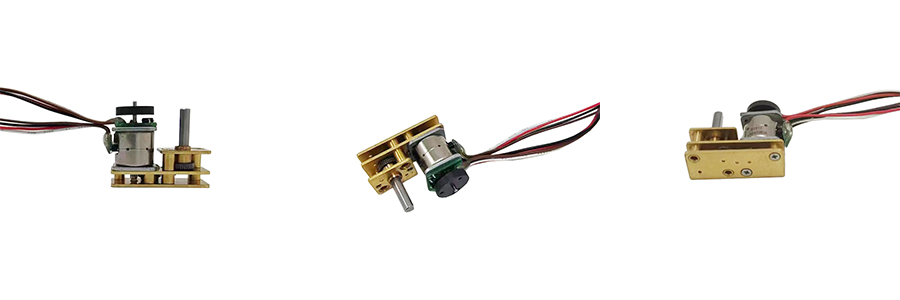

2 Phase 4 Wires 10mm Micro Metal Gearmotor Stepper Motor With encoder Images
|
