3.3V VSM1070 10 Mm Diameter Mini Size Naked Pins 18 Stepping Angle Stepper Motor

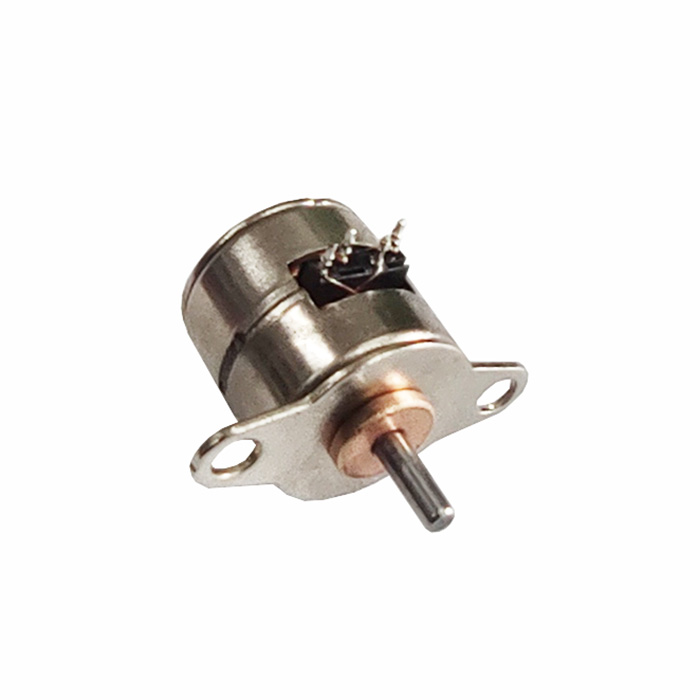

VSM1050 is a single bipolar stepper motor, with 10mm diameter, and 3.3V rated voltage.
The torque of this motor is about 5g*cm, and this motor has wide usage on different industries, such as medical device, and other high precision equipment.
This motor comes with naked pins and D shaft on top (without PCB and cables).
If you want us to solder cables, we can solder cables with connector and FPC (FPC is customizable).
Other parameters, such as motor resistance/ shaft length/shaft type, can all be customized, base on your specific requirements.

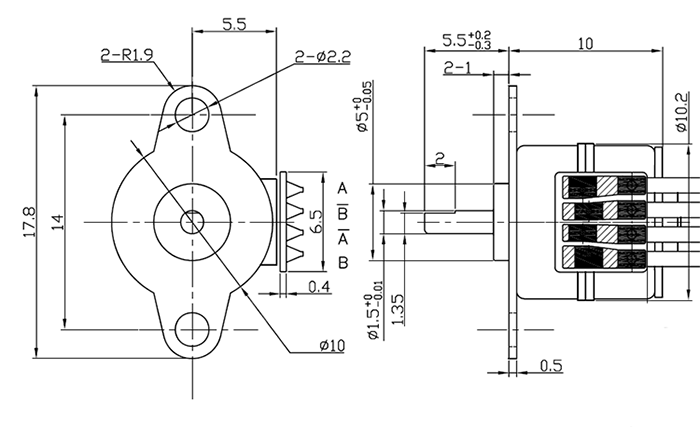

Mechanical Dimension:MM
Given the proper driving frequency of the stepper motor can reach the determination of the speed and torque.
This product gear box uses the most advanced equipment in the international processing related parts, so the high precision, high efficiency, low noise, and the use of reasonable and reliable process, make the product has better reliability.
The power input part and standard stepper motor can be used as probe structure, FPC, FFC, PCB cable and other forms.
Part of the output of the motor can be used in a variety of output structure, such as the circular axis, D axis, and the wire rod!
Typical Applications
- Saliva Analyzer
- Blood Analyzer
- Welding Machine
- Intelligent Security Products
- Fiber Fusion Splicer
- Digital Electronics
Specifications
| Motor type | Bipolar stepper motor |
| Model No. | VSM1070 |
| Motor size | 10mm diameter |
| Rated voltage | 3.3V DC |
| Current/phase | 330mA/Phase |
| Coil resistance | 10±7% Ω/phase |
| Step angle | 18° |
| Excitation mode | 2 phase excitation |
| Pull-in torque | More than 4 g*cm at 200 PPS |
| Pull-out torque | More than 5 g*cm at 200 PPS |
| Max response frequency | More than 1000 PPS |
Product Detail Presentation
Type of Wire Connect
Motor input method with Pin type,FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Shaft Type
Out shaft standard as follows,also can customerized due to the user drawings
welcome to contact customer service for more types
-
Round Type : DIA3mm. 4mm. 5mm
-
D-cut Type: DIA3-D2.5 DIA4-D3 etc
-
Screw Type: M3 M4 M5 Serial
-
Trape Type
-
I-cut Type: DIA3-I2 DIA4-I3
-
Other Type: Shaft with a hole etc
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes can be customized.
