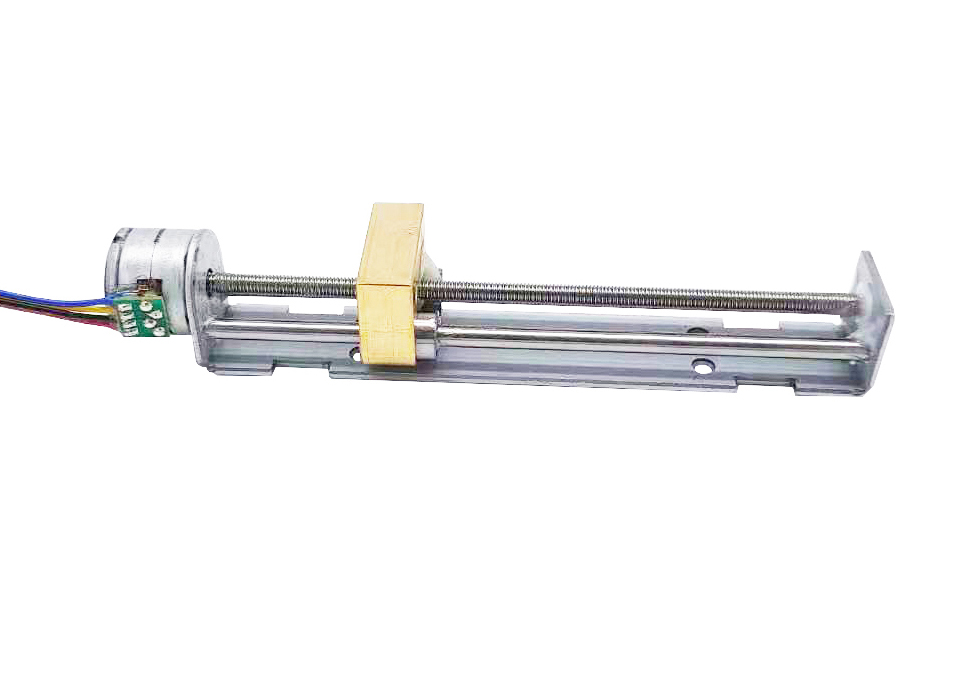

SM15-80L-T 2-phase copper slider stepper motor diameter 20 mm, with M3 lead screw, thrust 450g
This is a 15mm linear motor. It has a copper slider with two linear bearings, with the help of linear bearings, the stability of the slider is greatly improved.
The lead screw is an ordinary M3*0.5P thread, so when the motor rotates once, the slider will move a pitch (0.5mm). The step angle of the motor is 18 degrees, so when the motor takes 20 steps, it will make one revolution. The step size of this motor is 0.025mm.
The motor is very useful for precise linear control, the thrust of the slider can reach more than 400g.
The stroke of this motor is 80mm. (stroke is how far it can travel from both ends)
Our team has more than ten years of experience in stepper motor design, development and production, and can realize product development and auxiliary design according to the special needs of customers!
Applications:
widely used for automatic equipment, medical equipment, precision measuring instruments, engraving machines, other small linear slide devices, etc.

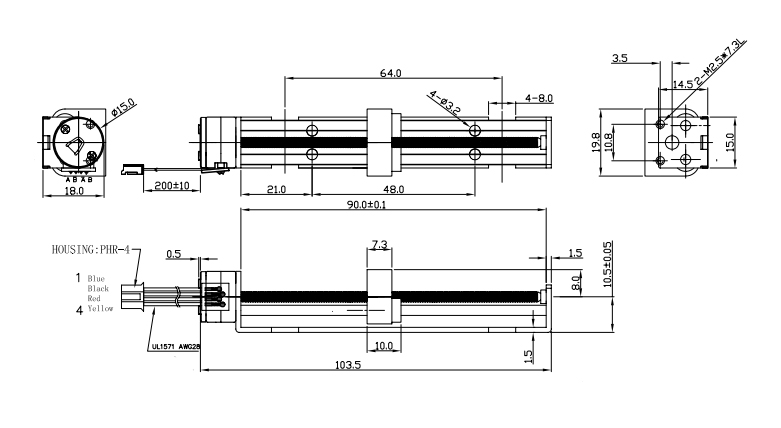

Mechanical Dimension:MM
Parameters:
| Model No. | SM15-80L |
| Coil Resitance | 15±10%Ω/PHASE(20℃) |
| voltage | 6 V DC |
| No. of phases | 2 phases |
| Current Per Phase | 400mA/PHASE |
| Step Angle | 18°/STEP |
| Exiting Method | 2 PHASES EXCITATION |
| Drive Mode | BIPOLAR DRIVE |
| Pull-Out Thrust | | More Than 230g AT 500 pps | |
| Max Response Frequency | More Than 1200 pps |
| Max Starting Frequency | More Than 900 pps |
| Insulation Class | Class E For Coils |
| Insulation Strength | 100 V AC FOR ONE SECOND |
| Insulation Resistance | 50mΩ DC 500 V |
| Operating Temperature | -0~+55℃ |
| Motor Surface Temperature | 80℃ or less |
1) CameraMain Application
2) Optical instruments
3) Lenses
4) Precision medical devices
5) Automatic door locks

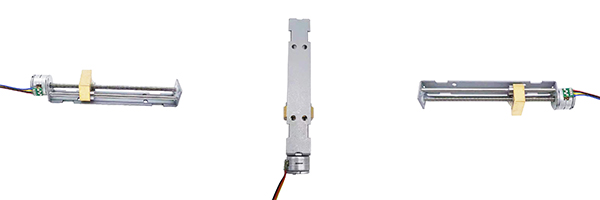

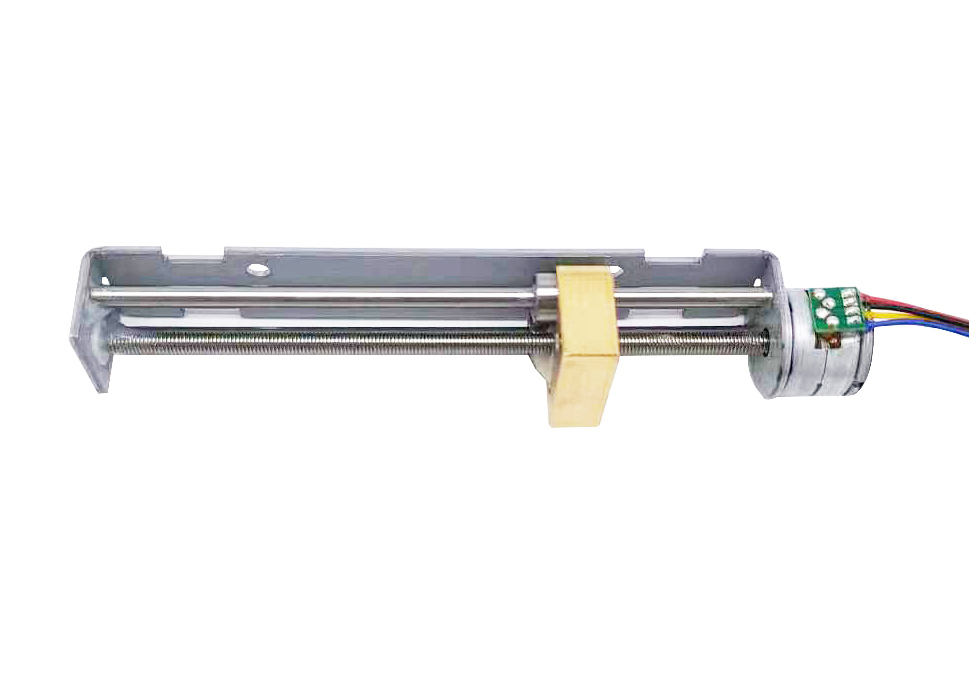

Product Detail Presentation
Type Of Wire Connect For Reference
The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.
