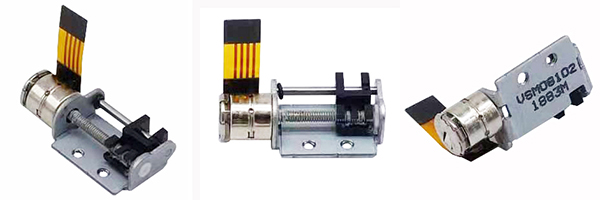

8mm 2 phases 18 Degrees CW / CCW Rotation Micro Stepper Motor With Two Phase for Intelligent Security Products

Name: 8mm 2 phases 18 Degrees CW CCW Rotation Micro Stepper Motor With Two Phase for Intelligent Security Products
Brand: VIC-TECH
Price: 1.88 USD

8mm 2 phases 18 Degrees CW / CCW Rotation Micro Stepper Motor With Two Phase for Intelligent Security Products Manufactures

Brand Name : VIC-TECH

Model Number : VSM08102

Certification : RoHS

Place of Origin : Jiangsu, China (Mainland)

MOQ : 1Unit

Price : $1.88~$7/Unit

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000000 Units/year

Delivery Time : 15-30 work days

Packaging Details : Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit

Step Angle(degrees) : 18 degree

Phase : 2 phases

Voltage : 3.3V

Resistance : 20 Ω±10%

Weight : 4 g

Rotation : CW/CCW

Type : Permanent Magnet

Holding Torque : 1.5. gf.cm~2.0 gf.cm

Contact Now

VSM08102 8mm micro slider stepper motor screw stepper motor with bracket 2 phase 4 wire stepper motor

VSM08102 is a precision micro step motor, the output shaft with a pitch of 0.4mm of the screw, through the screw and the screw rod supporting the turn of the screw into a thrust.
Motor basic step angle is 18 degrees, the motor running 20 steps every week, so the resolution of displacement can reach 0.02mm, to achieve the purpose of precision control.
Actuator aspects using subdivision drive way to meet.
Because of its small size, high precision, easy to control and other excellent characteristics, so this micro stepper motor is widely used in the camera, optical instruments, lenses, precision medical devices, automatic door locks and other fields.
The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.
The mounting bracket can be changed according to the customer's request.

Our team has more than 10 years of experience in stepper motor design, development and production, and can realize product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!

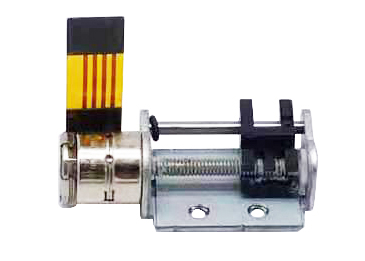

8mm 2 phases 18 Degrees CW / CCW Rotation Micro Stepper Motor With Two Phase for Intelligent Security Products

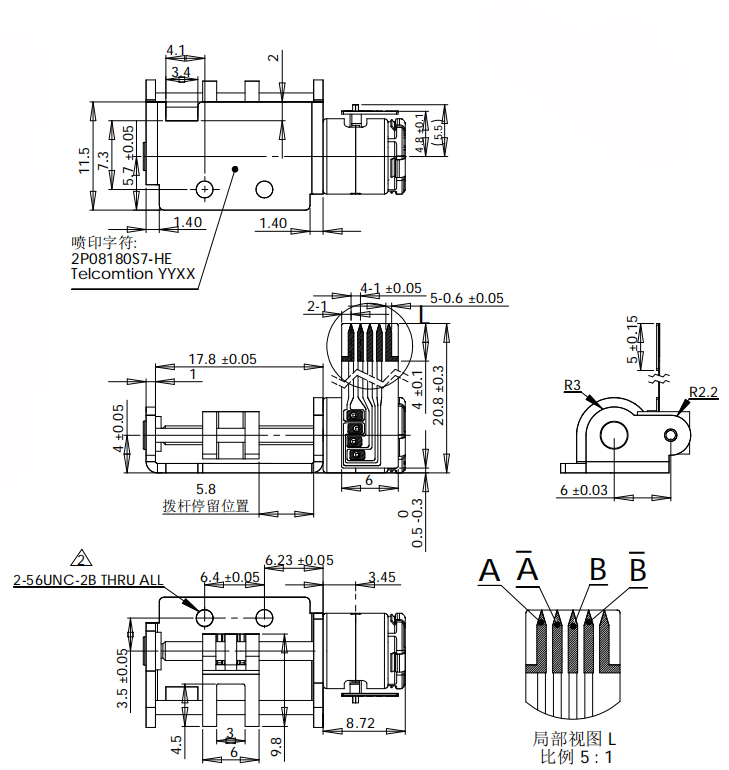

Mechanical Dimension:MM

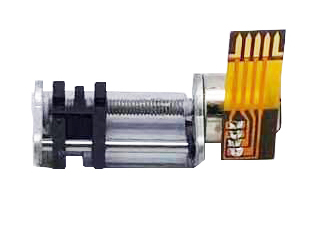

8mm 2 phases 18 Degrees CW / CCW Rotation Micro Stepper Motor With Two Phase for Intelligent Security Products

Technical Features

VSM08102 is a special precious micro stepper motor (or say linear stepper motor)with a bracket and push,
the moving speed can controlled by the precious micro stepper motor driving pulse frequency, the moving distance can be controlled by the precious micro stepper driving pulse number. for this typical motor, when motor driving 2-2 phase, 1 pulse make the slide move 0.02 mm. forthis type motor, the basic slide is a golden color unit as the photo show, also the slide can customization in any other material or shape.

Typical Applications

Intelligent Security Products
Camera Lenses
Door Locks
Wearable device

Specifications

Model No.	VSM08102
Coil Resitance	20Ω±10%
Rated voltage	3.3 V DC
No. of phases	2 phases
Step Angle	18°/STEP
Max Starting Frequency	800 PPS min,(AT 3.3 V DC)
Max Slewing Frequency	2000 PPS min,(AT 3.3 V DC)
Pull in Torque	1.5 gf-cm min(AT 500 PPS,3.3 V DC)
Pull out Torque	2.0 gf-cm min(AT 500 PPS,3.3 V DC)
Insulation Class	CLASS E FOR COILS
Insulation Strength	100V AC FOR ONE SECOND(3mA MAX)
Insulation Resistance	1.0mΩ(DC 100 V)
Operating Temperature	-10~60℃
Encironmental Conditions Using Screw Grease EM-60L	-40~90℃

High quality and the best price.
Competitive Advantage

Fast deliver,storage company and rich inventory
Near Shanghai port, the traffic is very convenient.

Torque Curve For Reference

8mm 2 phases 18 Degrees CW / CCW Rotation Micro Stepper Motor With Two Phase for Intelligent Security Products

Product Detail Presentation
8mm 2 phases 18 Degrees CW / CCW Rotation Micro Stepper Motor With Two Phase for Intelligent Security Products
