High Torque Multi Gear Ratio Double Stack Stepper Motor 15mm With Worm Gearbox

Name: High Torque Multi Gear Ratio Double Stack Stepper Motor 15mm With Worm Gearbox
Brand: VIC-TECH
Price: 4 USD

High Torque Multi Gear Ratio Double Stack Stepper Motor 15mm With Worm Gearbox Manufactures

Brand Name : VIC-TECH

Model Number : SM15-818G-8D

Certification : RoHS

Place of Origin : Jiangsu, China (Mainland)

MOQ : VIC-TECH

Price : $4~$9/unit

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000000Units per year

Delivery Time : 20-30 work days

Packaging Details : Standard export package, or can be customized

Motor type : Geared Stepper motor

diameter : 15mm

Output shaft : 10mm D shaft

Gearbox size : 18*12*10

Reduction ratio : 21:1,42:1,118:1,236:1,302:1, 399:1,515:1,603:1,798:1,1030:1

resistance : 31Ω(15:1)

Step angle : 18°

Motor lead length : 70mm

Contact Now

High Torque 15mm Multi-Gear Ratio Double Stack Stepper Motor With Worm Gearbox

Description:

This is 15mm diameter double stacked motor with worm gearbox.

This motor is a double stacked motor.

It is two 15mm stepper motors combined together to provide motor torque.

The efficiency of this motor is about 80%, and a double stacked motor has about 1.8 times of torque compared to a single 15mm motor.

We have different gear ratios for you to choose, from 21:1 to 1030:1

Parameters:

PRODUCT NAME	15 mm worm geared stepper motor
MODEL	SM15(double)-818G-8D
RESISTENCE	31Ω±7% (optional 20 15 10 ohm)
OPERATING TEMPERATURE RANGE	-0~+55 ℃
GEAR RATIO	21:1 42:1 118:1 236:1 302:1 603:1 875:1 1030:1
OEM & ODM SERVICE	AVAILABLE
Step angle	18 degrees/gear ratio
Coil resistance	5V DC

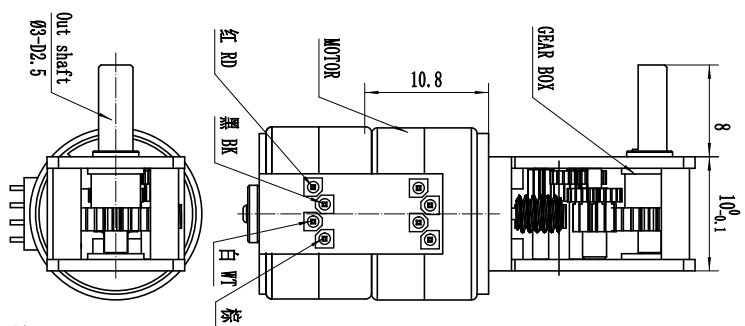

15mm motor Mechanical Dimension:MM

High Torque Multi Gear Ratio Double Stack Stepper Motor 15mm With Worm Gearbox

Typical Applications

Office Automatic Equipments
Printer/paper Feeder
Bank Equipments
Safe Box
Ad Equipment
Household Appliances
Electtric Door Locks

Product Detail Presentation

High Torque Multi Gear Ratio Double Stack Stepper Motor 15mm With Worm Gearbox

Packaging and Shipping information:

Samples are packed with foam sponge inside paper box.

For mass production, products are packed in paper carton.

For sea shipping (Mass production), cartons are packed on pallet.

High Torque Multi Gear Ratio Double Stack Stepper Motor 15mm With Worm Gearbox

Product Tags:

Double Stack Stepper Motor 15mm

Worm Gearbox Double Stack Stepper Motor

10mm D Shaft Geared Stepper Motor
