VSM28H32 Chinese factory direct sales28mm Diameter NEMA 11 1.8 Degree Hybrid Stepper Motor

Product Categories

Changzhou Vic-Tech Motor Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

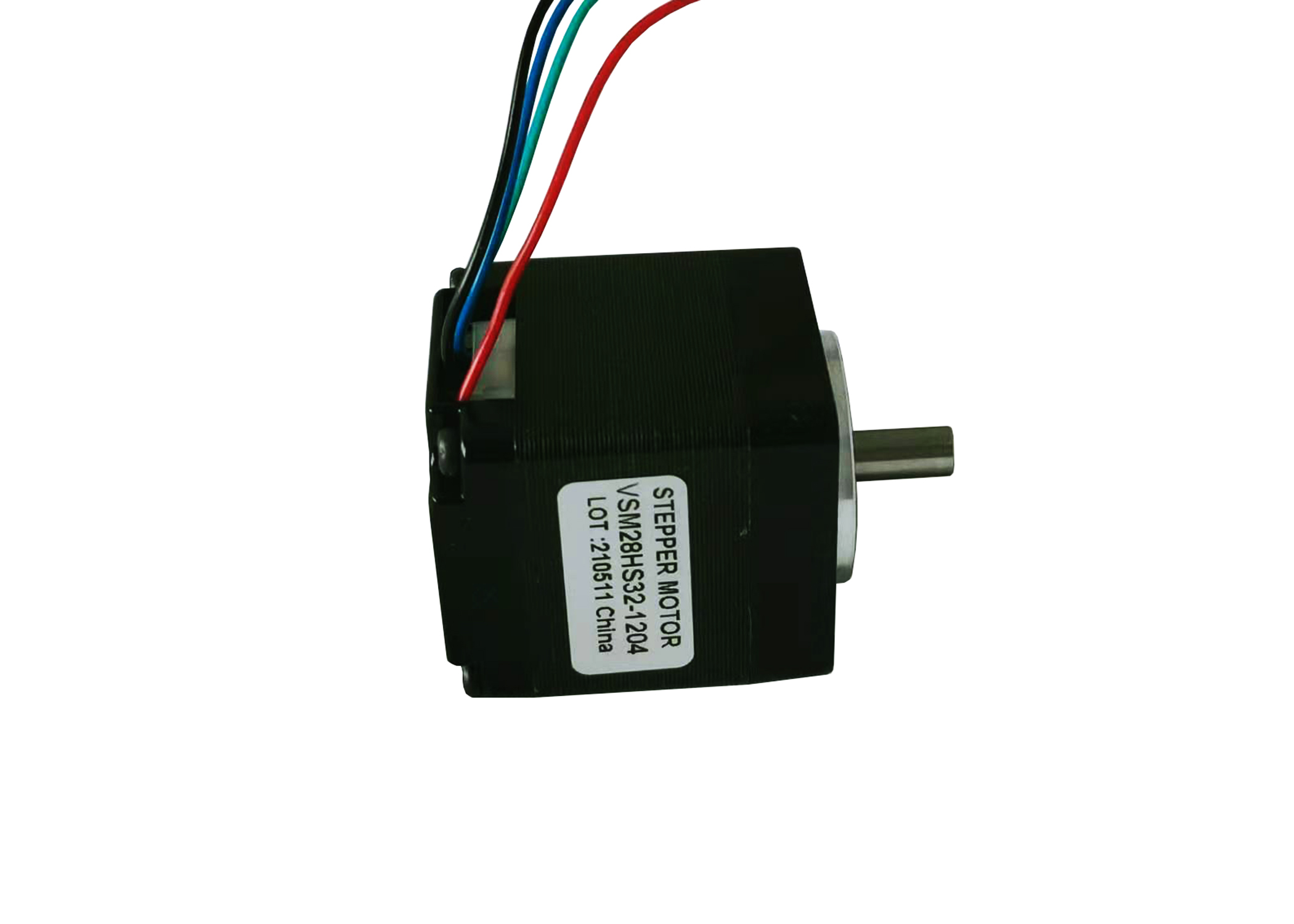

VSM28H32 Chinese factory direct sales28mm Diameter NEMA 11 1.8 Degree Hybrid Stepper Motor

Name: VSM28H32 Chinese factory direct sales28mm Diameter NEMA 11 18 Degree Hybrid Stepper Motor
Brand: VIC-TECH
Price: 6.5 USD

VSM28H32 Chinese factory direct sales28mm Diameter NEMA 11 1.8 Degree Hybrid Stepper Motor Manufactures

Brand Name : VIC-TECH

Model Number : VSM28H32

Certification : RoHS

Place of Origin : Jiangsu, China (Mainland)

MOQ : 1 Unit

Price : $6.5.00 - $10.00 / Units

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000Units per month

Delivery Time : 5-50 work days

Packaging Details : Standard export package, or can be customized

Step Angle(degrees) : 1.8°

Holding Torque : 600g.cm

Rated Voltage : 1.7 V

Rated Curren : 1.2 A

Weight : 0.11 kg

Number of Phase : deg. 2

Motor type : Hybrid stepper moto

Outer diameter : 28mm

Contact Now

Chinese factory direct sales28mm Diameter NEMA 11 1.8 Degree Hybrid Stepper Motor

Our stepper motor series are: 20mm, 28mm, 35mm, 39mm, 42mm, 57mm, 60mm, 86mm, 110mm, 130mm. Two-phase, three-phase and four-phase hybrid stepping motor. The DC brushless motor range includes 42BLS, 57BL(S), 86BLS, and matching DC brushless drivers.
Therefore, the products are in line with ROHS requirements. Applications include robotics, industrial electronic automation equipment, medical equipment, advertising equipment, printing equipment, textile machinery and so on. Has been exported to the United States, Germany, Italy, Spain, the United Kingdom, Mexico, Brazil and other more than 20 countries.

Mechanical Dimension:MM

VSM28H32 Chinese factory direct sales28mm Diameter NEMA 11 1.8 Degree Hybrid Stepper Motor

Typical Applications

3D Printer
Monitoring Equipment
Medical Machinery
Vending Machine
Engineering Vehicle
CNC Engraving Machine
ATM Machine

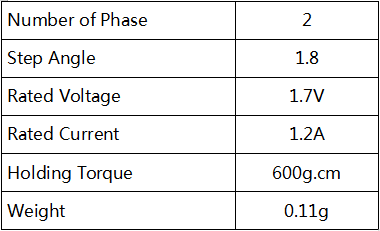

Electrical Characteristics

VSM28H32 Chinese factory direct sales28mm Diameter NEMA 11 1.8 Degree Hybrid Stepper Motor

Environmental Performance

No.	ITEM		OPERATING
1	Operation environment conditions	Ambient temperature	-20℃～+50℃
		Ambient Humidity	15～85%RH No condensation
2	Storage environment conditions	Ambient temperature	-30℃～+70℃
		Ambient Humidity	15～85%RH No condensation

The above products are only representative models, we can customize the products according to customer requirements. Includes the length and diameter of the shaft.Our company can also provide OEM services.
